Our CleanTop® Coating system is much more than just a subsequently applied impregnation on the stone surface. Our Clean-Top® systems represent an essential competitive advantage for your products, and they are already approved for decades! From acrylate wet-side coating systems to 2-component systems (part of mixdesign and coating layer) to 3-component systems applied on the wet and dry side. The question is: What do you need for your products and for your market? Which benefits and climatic challenges are important for you?
With our advice and experience in application technology of spraying bars, roller systems and robots, we will find the right solution for your company to make your products more durable. You will achieve excellent results if we mutually consider the interaction of raw materials, surface properties and performance requirements.
We have been developing suitable coatings for a wide range of paving stones and slabs for over 20 years. In doing so, we are not only focussed on practice and customer value, but also benefit from our own experience in our production – day-to-day. As always, success is based on details.

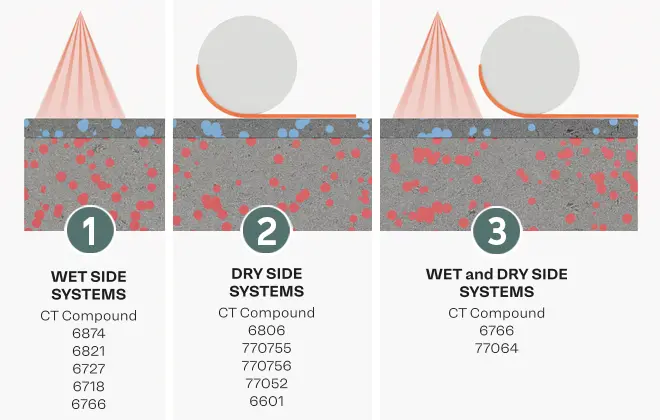

| CleanTop-System | Concret Mixture Additives | Wetside Coating | Concrete Curing Climate Controled | Surface Treatment | Dryside | Concrete-Product | ||
|---|---|---|---|---|---|---|---|---|
| Spray Application | Preparation | Coating | Hardening | (Tradename) | ||||

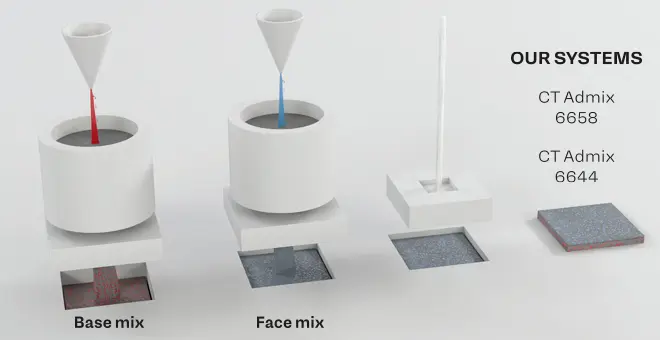

| ONE | CT Admix 6658 + additives |
Optional | IR | X-Protect 70575 70576 | IR | Corio®/ Boulevard® |
||
| TWO | CT Admix 6658 (optional) |
CT Compound 6724 | Yes | Standard | ||||
| TWO | CT Admix 6658 (optional) |
CT Compound 6718/6727/6766 |

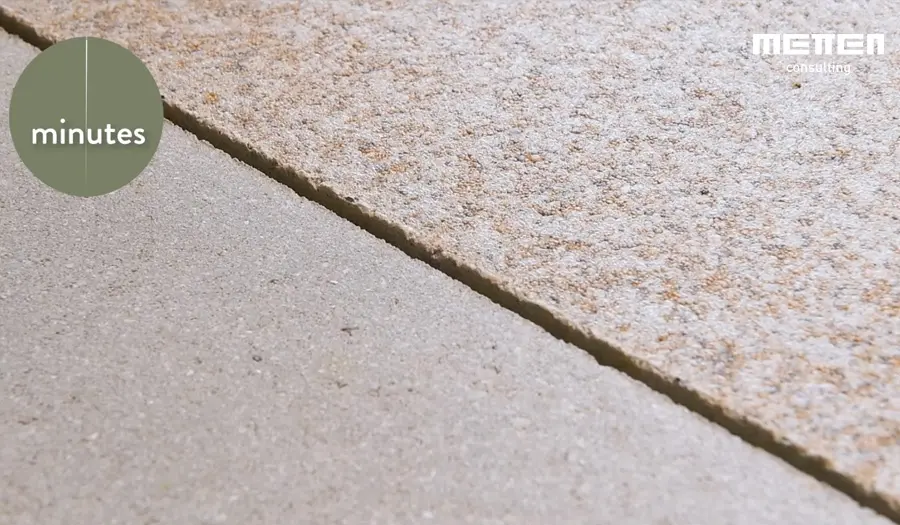

Yes | Umbriano®/ La Linia® |
||||
| THREE | CT Admix 6658 | CT Compound 6762 |
Yes | Senzo® | ||||
| FIVE | CT Admix 6658 | CT Compound 6762 + Surface Treatment |
Yes | IR | CT7051 | UV | Belpasso® | |
| FIVE | CT Admix 6658 | CT Compound 6766 |
Yes | IR | CT7055 | UV | new CF 120 | |
| FIVE | EcoTerra | Yes | IR | CT7060 | UV | new CF 120 | ||
| CleanTop-System | Concret Mixture Additives | Wetside Coating | Concrete Curing Climate Controled | Surface Treatment | Dryside | Concrete-Product | ||
|---|---|---|---|---|---|---|---|---|
| Spray Application | Preparation | Coating | Hardening | (Tradename) | ||||
| THREE | Optional | IR | 6601 | IR | Arcadia® | |||
| THREE | Optional | IR | 7052 | UV | Platinum®/ Soreno® |
|||

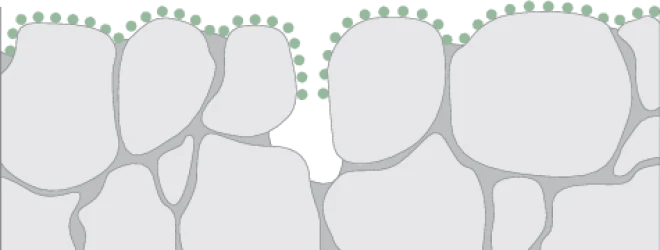

• System for products manufactured on a board machine
• Suitable surfaces with a mechanical secondary finish, e.g. for shot blasted, ground, curled and “structured”
surfaces
• Open to diffusion
• Application on the Dry- side by a roller system, after pre IR heating
• Hardening after application by IR system
• Immediate possibility to package the product
• Climate controlled curing beneficial
• Easier to clean compare to a non protected surface
• Higher resistance to de-icing salt, freezing and
weathering

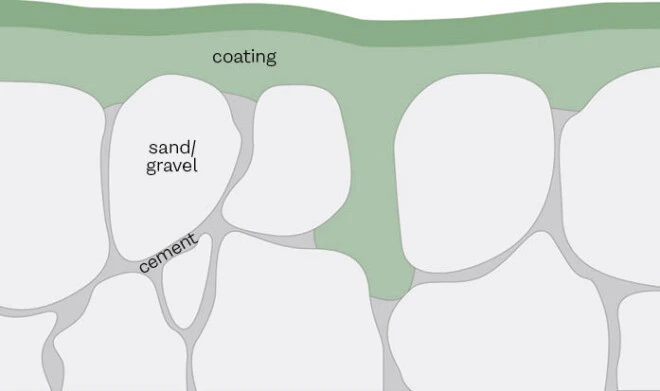

• System for products manufactured on a board machine
• Suitable for washed and non-treated surfaces

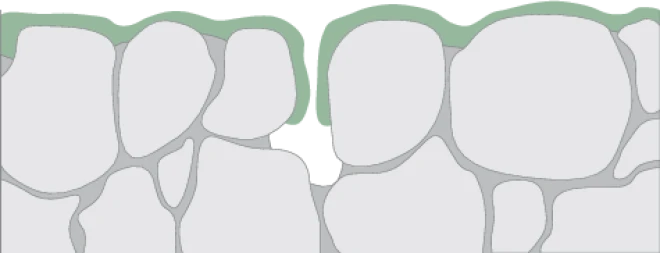

• Open to diffusion, film-forming
• Waterborn coating system
• Wet side application by spraying system
• Climate controlled curing beneficial
• Immediate possibility to package the product
• Highly efficient system, less investment cost
• Easier to clean compare to a non protected surface
• Higher resistance to de-icing salt, freezing and weathering

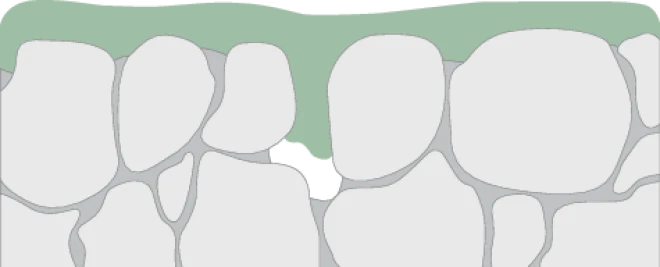

• System for slabs manufactured on a hermetic press, suitable for e.g. shot-blasted, ground or curled surfaces.

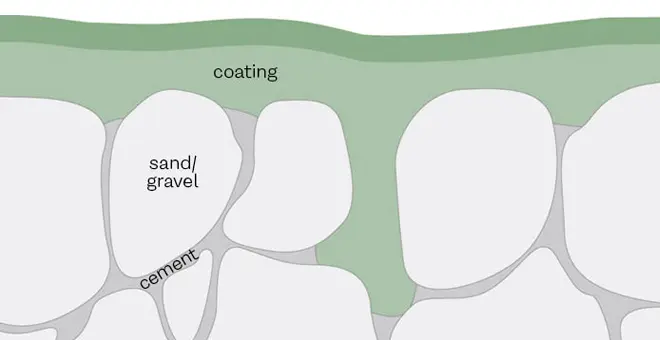

• Restricted diffusion, film-forming
• Application by roller system on the dry side after curing
• Very easier to clean compare to a non protected surface
• No efflorescence
• Higher resistence to de-icing salt, freezing and weathering

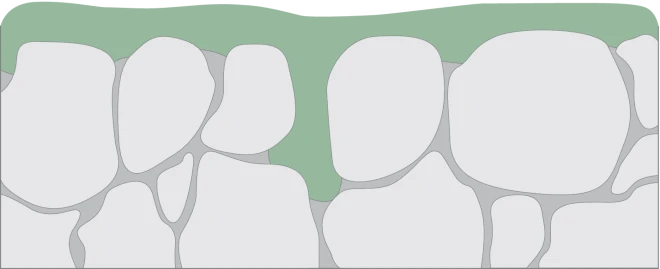

• System for products manufactored on a board machine for special surfaces like “Senzo”
• Restricted diffusion, film-forming
• Spraying application on the wet side
• Climate controlled curing necessary
• Very easy to clean compare to a non protected surface
• No efflorescence
• Higher resistance to de-icing salt, freezing and weathering

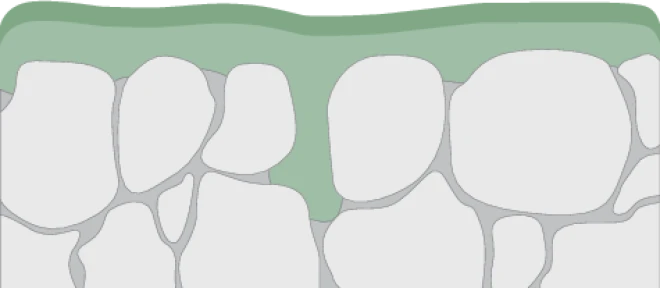

• System suitable for all products prepared with System 4 or for all cementfree products manufactured with the EcoTerra Technology
• Secondary finishes are possible (e.g. shot- blasting)
• Restricted diffusion, film-forming
• Spraying application on the wet side AND a further application by roller system OR spraying device after curing
• Climate controlled curing necessary
• Very easier to clean compare to a non protected surface
• No efflorescence
• Higher resistence to de-icing salt, freezing and weathering
